Tucked among the Lesser Sunda Islands of Indonesia, the remote Komodo island is home to the famed Komodo dragon, while the tropical waters surrounding the island are host to some of the richest marine biodiversity on the planet.  Begging to explore these rich waters, the HELM Komodo features a 316L stainless steel case and bracelet, automatic movement, screw-down caseback and crown, domed sapphire crystal, unidirectional bezel, highly legible dial and a 300 meter depth rating. With a compact case diameter of 40mm, the ISO 6425 compliant Komodo is the perfect size to strap on for any far-flung adventure.

Available with three dial variations and several aftermarket bezel options, the Komodo also includes the NS1 Nylon Strap―an excellent option in the water and a casual, lighter weight alternative to the stainless bracelet. And with a standard 20mm lug width, the Komodo can be dressed up or down with limitless aftermarket straps, including our own NS2 and NS3 nylon straps, RS1 and RS2 rubber straps and the SS1 or SS2 stainless bracelet.

SPECIFICATIONS:

WHAT YOU GET:

• Komodo 300m Automatic Watch

• SS3 Stainless Steel Bracelet
• One NS1 Nylon Strap (your choice of 6 colors)

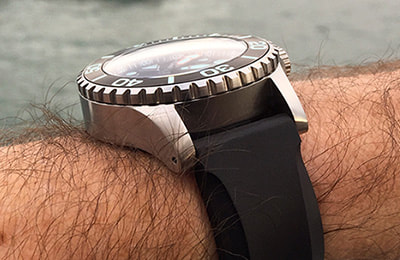

CASE:

• Brushed 316L Stainless Steel
• Integrated Crown Guards

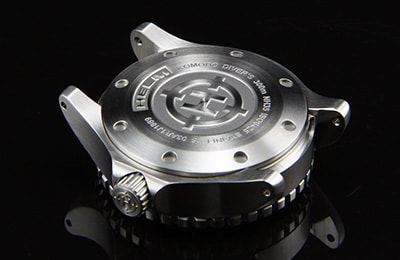

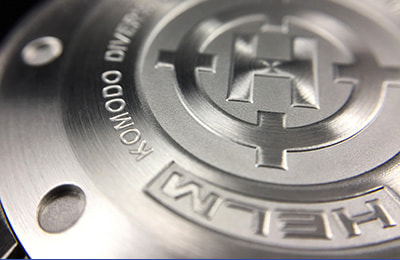

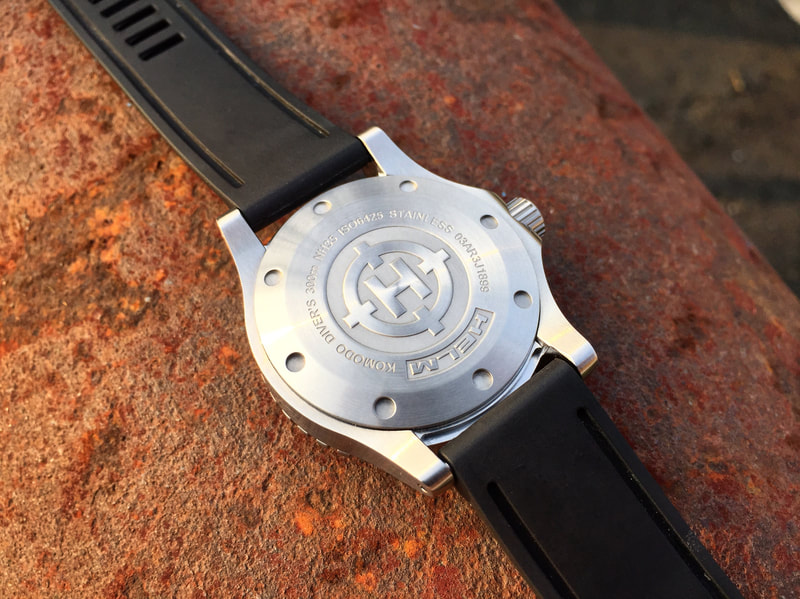

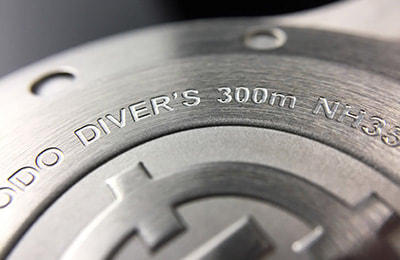

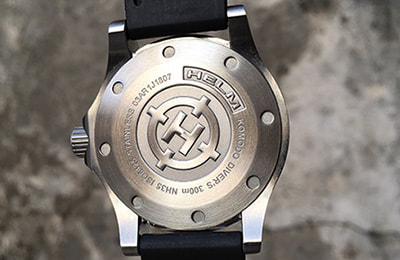

• Screw Down Caseback
• Diameter (12H to 6H):  40 mm
• Diameter (9H to 3H, with crown):  45 mm
• Lug to Lug:  47 mm
• Lug Width:  20 mm
• Height:  15.5 mm (including domed crystal)

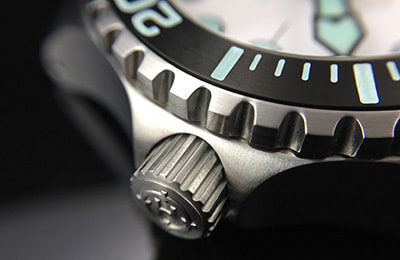

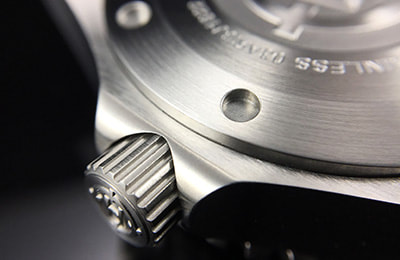

CROWN:

• Brushed 316L Stainless Steel
• Screw Down
• Location:  3 o’clock
• Diameter:  7 mm

MOVEMENT:

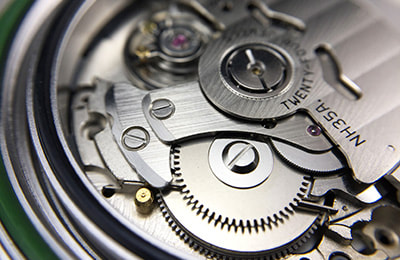

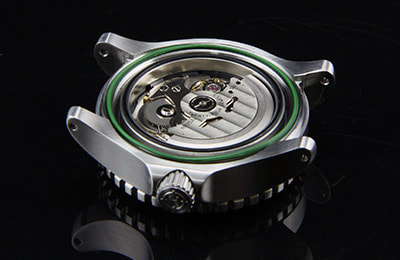

• Seiko Instruments NH35 (Automatic Mechanical)
• Hacking and Manual Winding Functions
• Accuracy:  -20 ~ +40 seconds/day
• Beats Per Hour:  21,600
• 24 Jewels
• Power Reserve:  40 Hours

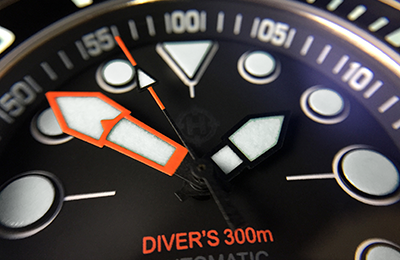

DIAL & HANDS:

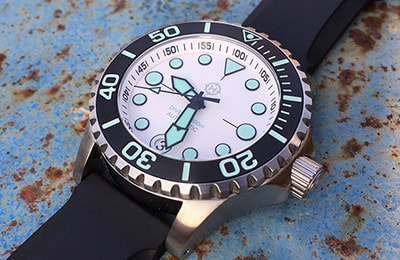

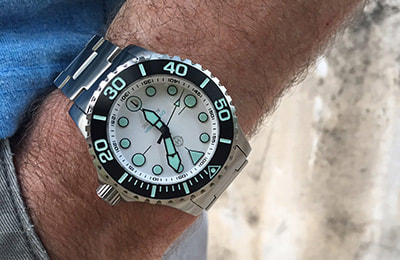

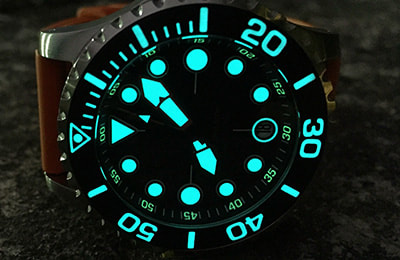

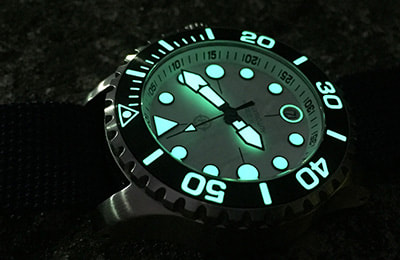

• Dial:  Three Color Variations, all with Super-LumiNova

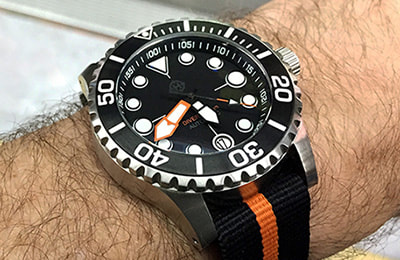

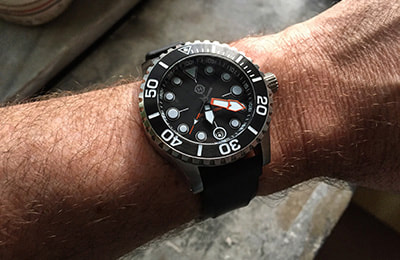

           – Matte Black with BGW9 Lume  (03AR1)

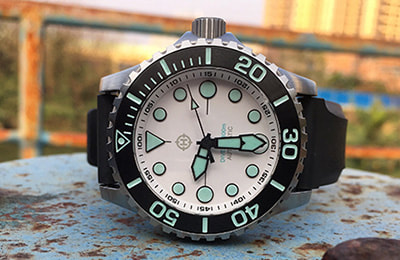

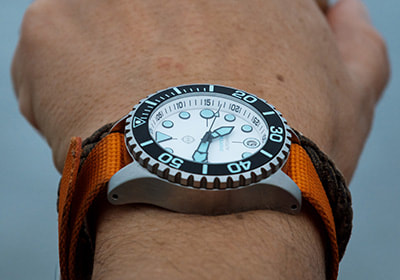

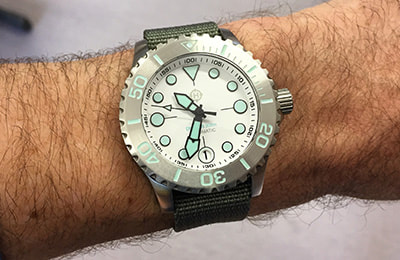

           – Matte White with Light Blue with  (03AR3)

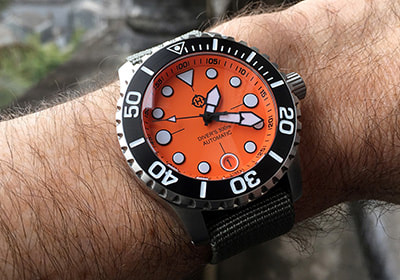

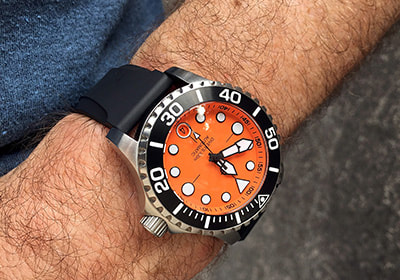

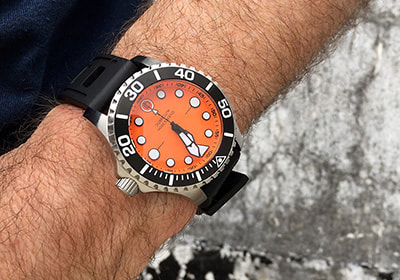

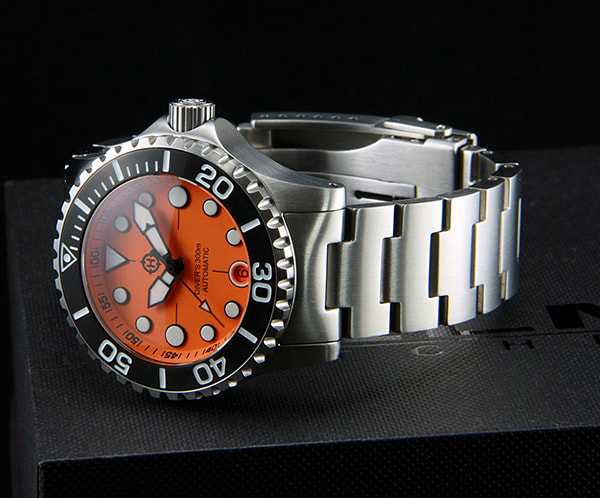

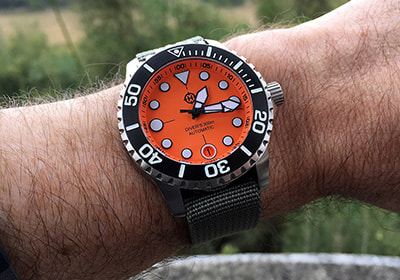

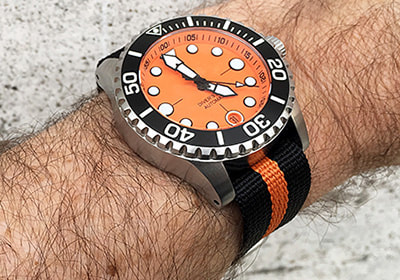

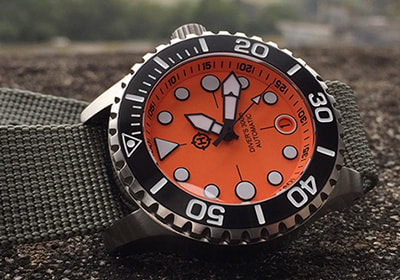

           – Matte Orange with BGW9 Lume  (03AR4)

• Hands:  Luminous Hour, Minute & Second, Filled with                        Super-LumiNova to Match Dial Markings

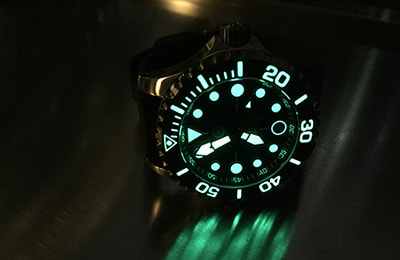

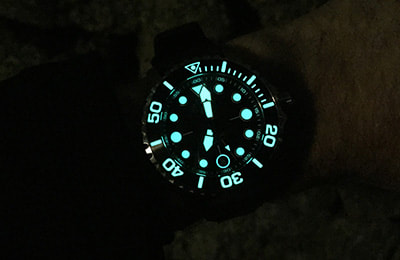

• A Note About Lume Color:

         – BGW9 Lume = White Body Color with Blue Afterglow
         – Light Blue Lume = Light Blue Body Color with Green
           Afterglow

• Date Window:  6 o’clock

BEZEL:

• 316L Stainless Steel
• 120-Click, Unidirectional Rotation
• Diameter:  40 mm
• Removable / Interchangeable:  Yes
• Insert:  Stainless Steel with Black PVD Coating, filled
  with Super-LumiNova BGW9 or Light Blue  Lume


CRYSTAL:

• Double -Domed Sapphire with Colorless Internal
  Anti-Reflective Coating

BAND:

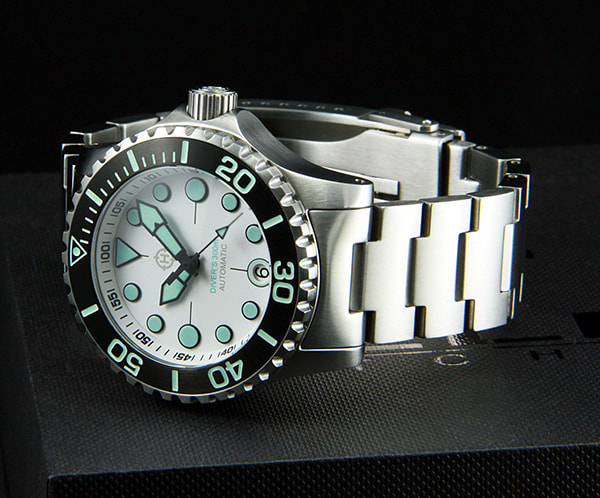

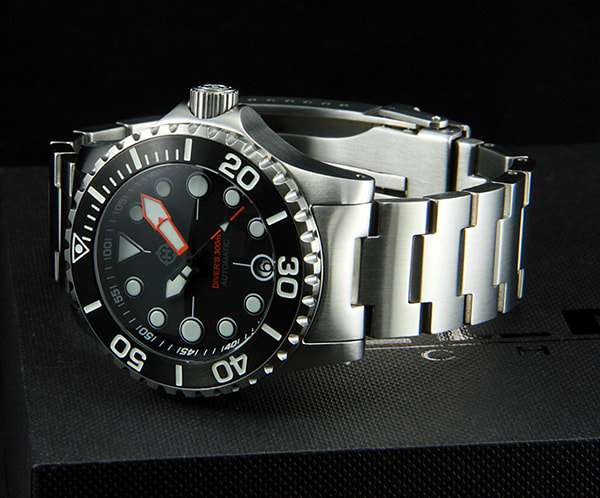

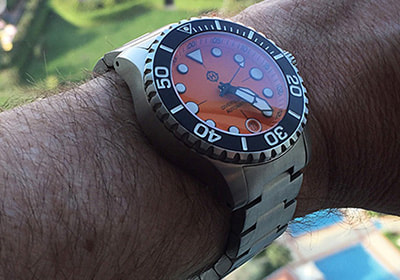

• Stainless Steel Bracelet and FC1 Clasp with Brushed
  Finish

          Maximum Length:  190 mm / 7-1/2″ (alone)
                                             235 mm / 9-1/4″ (on watch)
          Minimum Length:  110 mm / 5-3/8″ (alone)
                                            155 mm / 6-1/8″ (on watch)

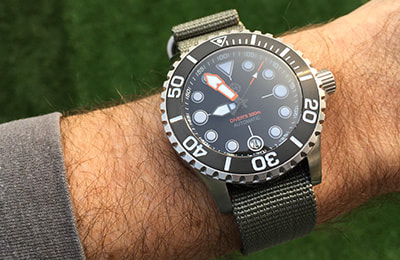

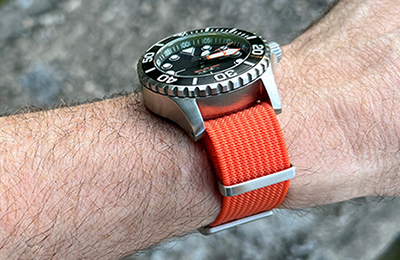

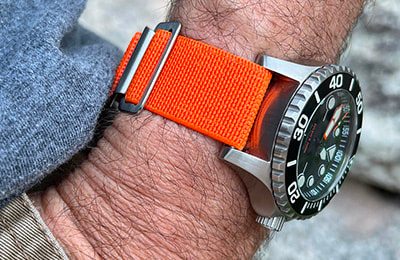

• NS1 Nylon Strap with Stainless Steel Buckle and Keeper Rings

WATER RESISTANCE:

• 300 m / 30 atm / 990 ft
• Tested in accordance with ISO 6425:2018

WEIGHT:

• With Stainless Bracelet (at full length): 215 grams
• With NS1 Nylon Strap:  110 grams

ACCESSORIES:

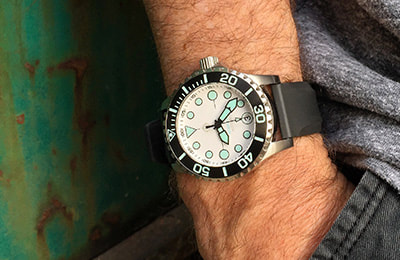

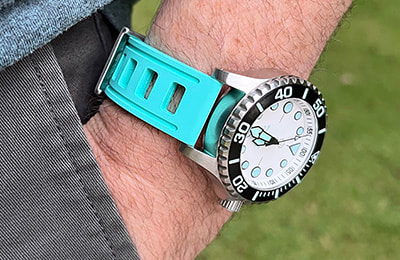

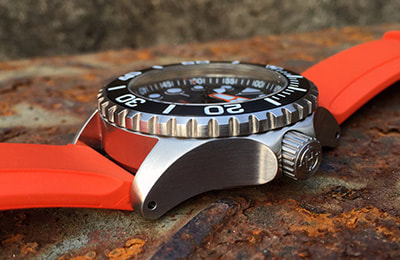

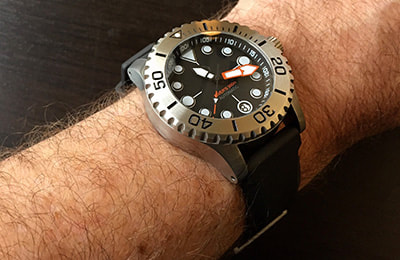

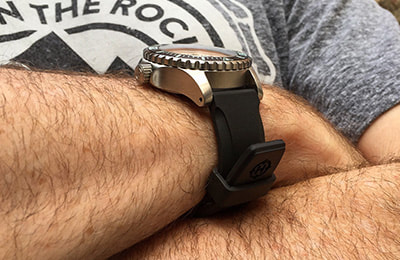

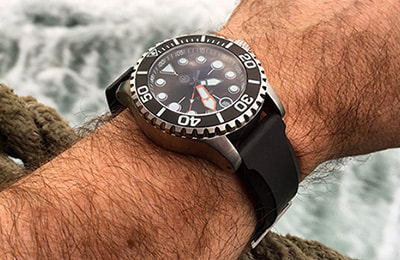

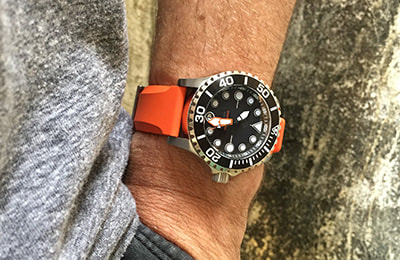

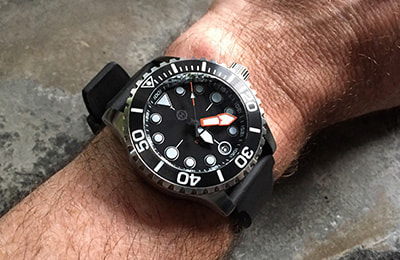

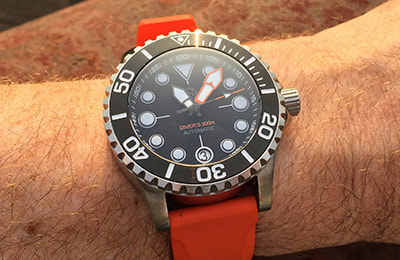

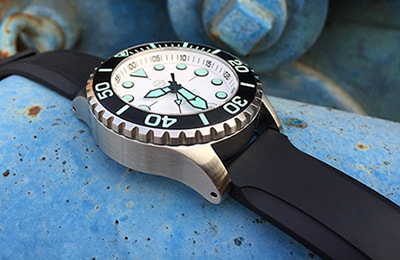

• The rubber straps and alternate bezels pictured in some photos at left, as well as the NS2 and NS3 nylon straps, are available separately and at a discount when purchased with a watch.
