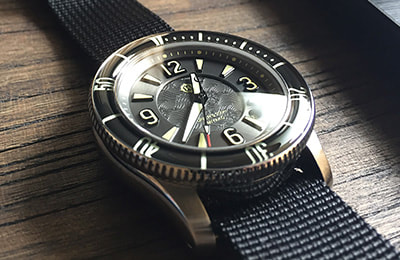

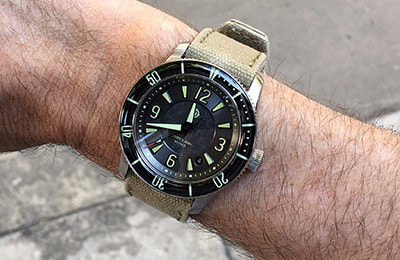

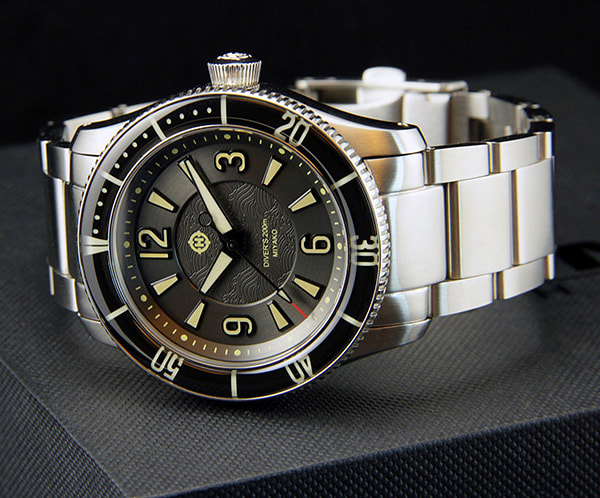

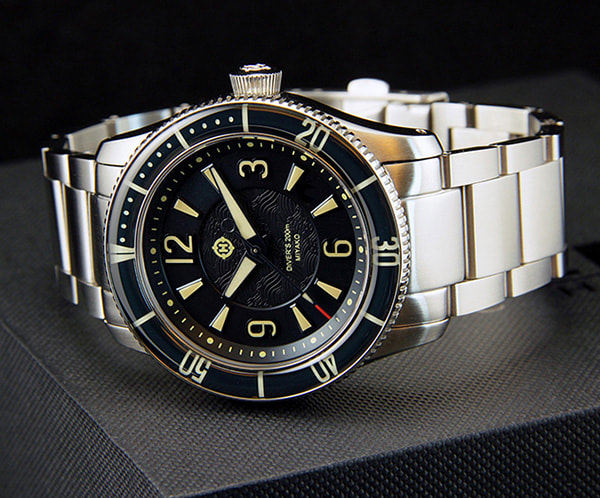

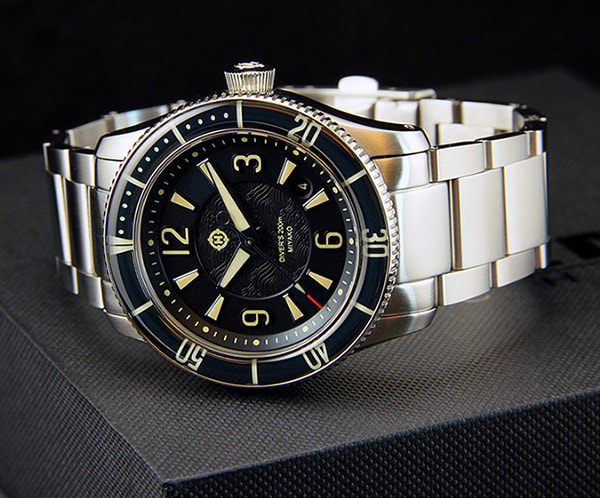

Located off the northeastern coast of Taiwan, the Japanese island of Miyako is ringed with white sand beaches and surrounded by crystal clear blue-green waters ideal for snorkeling and freediving. This idyllic Japanese island seemed the perfect inspiration for the HELM Miyako, which is fitted with the venerable Miyota 9015 movement. The watch also features a 316L stainless steel case and bracelet, screw-down caseback and crown, domed sapphire crystal and bezel, highly legible dial and a 200m depth rating. With a case diameter of 40mm, the ISO 6425 compliant Miyako is perfectly sized for any adventure, in or out of the water.

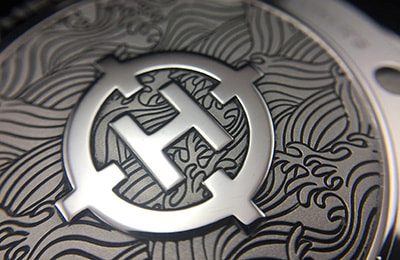

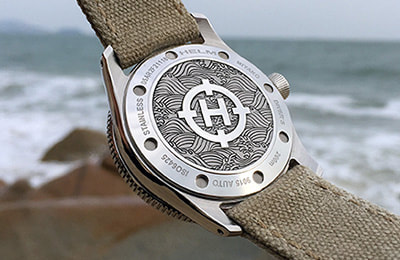

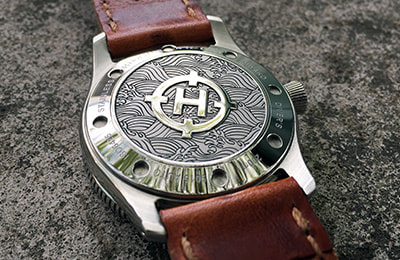

Traditional Japanese patterns, or wagara, are often based on patterns found in nature, and are widely used on textiles, ceramics and other everyday objects in Japan. The seigaiha pattern, which literally translates to “blue ocean waves” and was originally used to depict water on maps, evokes the power, resilience and tranquillity of the sea, and symbolizes waves of good fortune, prosperity and enduring peace. Named for a Japanese island and designed for a life beneath the waves, the Miyako is adorned with our own seigaiha pattern to symbolize the adventure, abundance and harmony that the ocean represents.

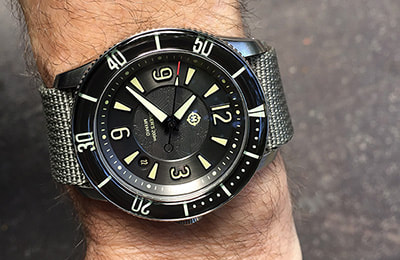

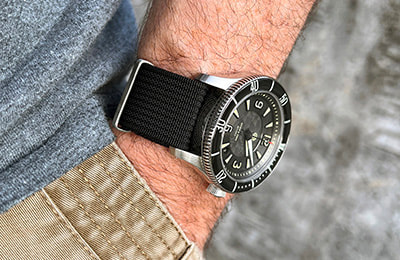

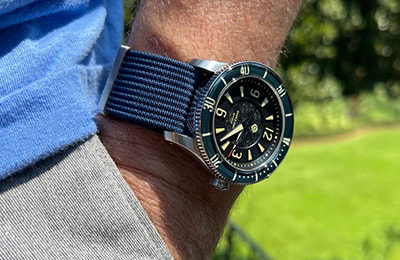

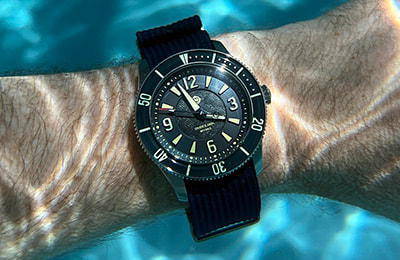

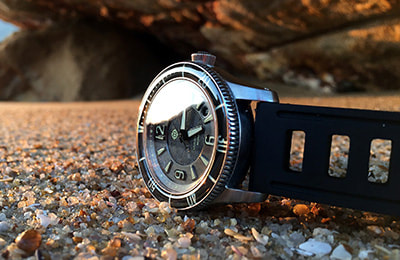

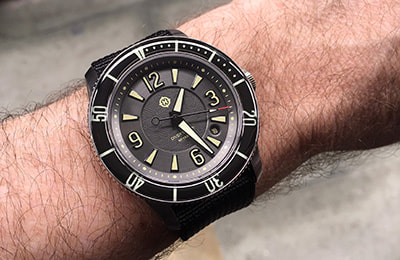

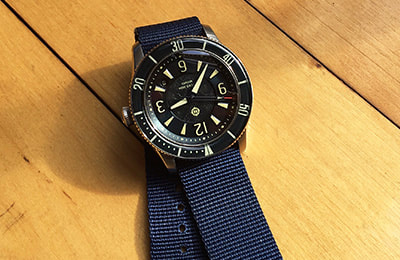

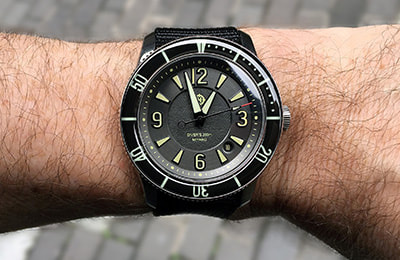

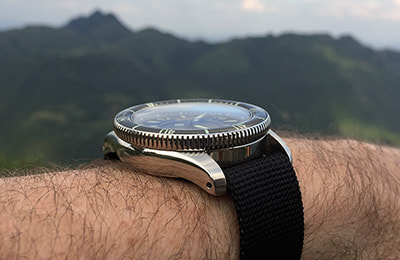

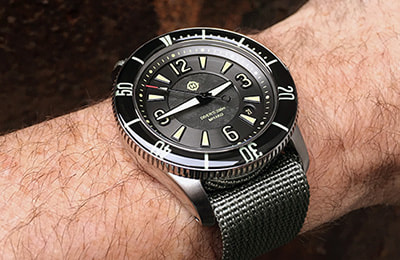

Available with a gray or blue dial, the Miyako also includes the NS2 Nylon Strap―an excellent option in the water and a casual, lighter weight alternative to the included stainless bracelet. With a standard 22mm lug width, the Miyako can also be dressed up or down with limitless aftermarket straps, including our own NS1 and NS3 nylon straps, RS1 and RS2 rubber straps, CS1 canvas strap and LS1 and LS2 leather straps.

SPECIFICATIONS:

WHAT YOU GET:

• Miyako 200m Automatic Watch

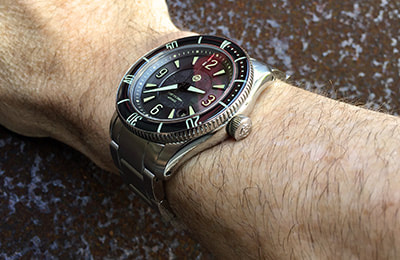

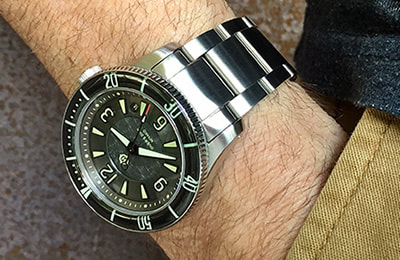

• SS4 Stainless Steel Bracelet
• One NS2 Nylon Strap (your choice of 7 colors)

CASE:

• Polished 316L Stainless Steel

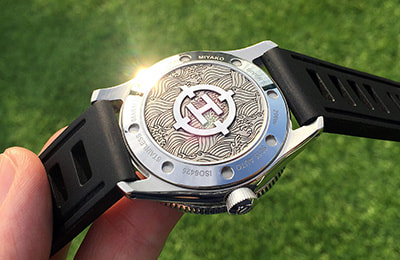

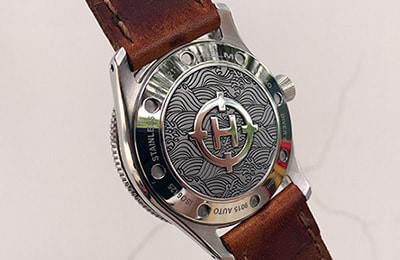

• Screw Down Caseback
• Diameter (12H to 6H):  40 mm
• Diameter (9H to 3H, with crown):  44.5 mm
• Lug to Lug:  47 mm
• Lug Width:  22 mm
• Height:  13.75 mm (including domed crystal)

CROWN:

• Polished 316L Stainless Steel
• Screw Down
• Location:  3 o’clock
• Diameter:  7 mm

MOVEMENT:

• Miyota 9015 (Automatic Mechanical)
• Hacking and Manual Winding Functions
• Accuracy:  -10 ~ +30 seconds/day
• Beats Per Hour:  28,800
• 24 Jewels
• Power Reserve:  42 Hours

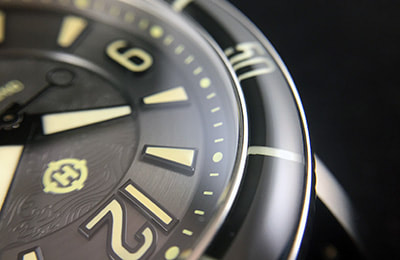

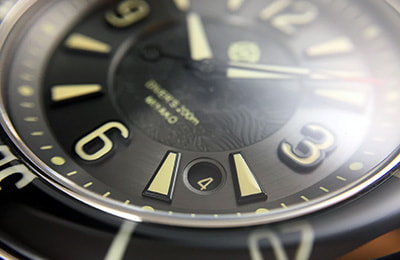

DIAL & HANDS:

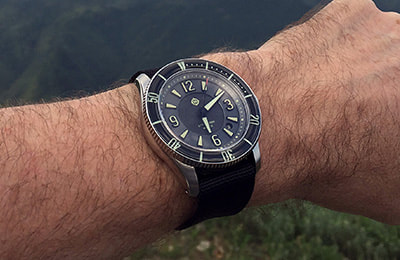

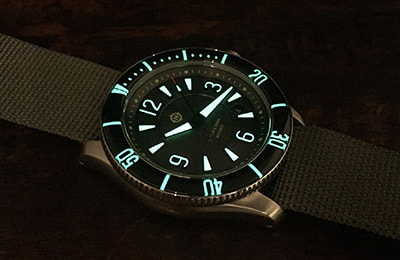

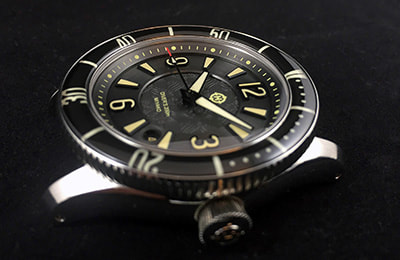

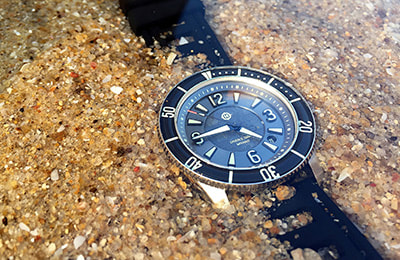

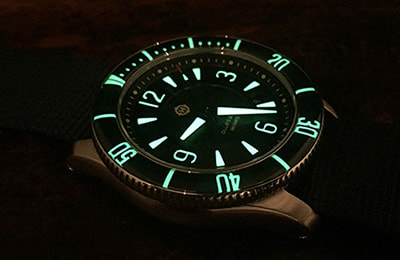

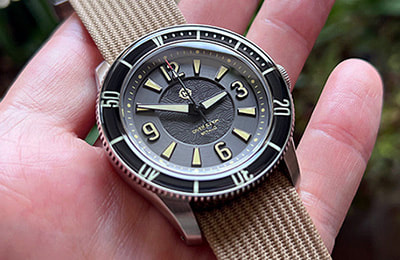

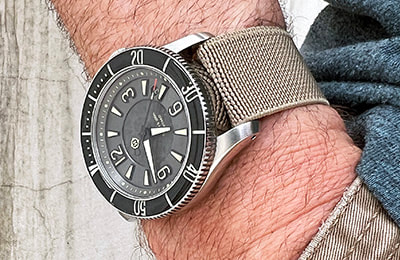

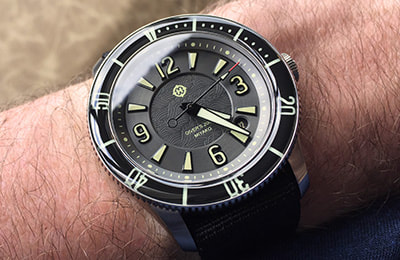

• Dial:  Two Color Variations, both with Super-LumiNova

          – Slate Gray with Light Old Radium Lume (05AR1)

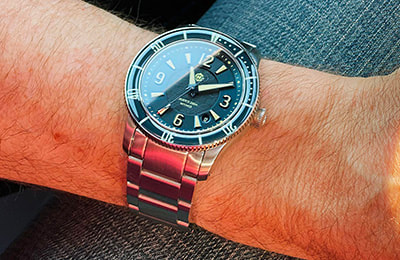

          – Navy Blue with Light Old Radium Lume (05AR2)

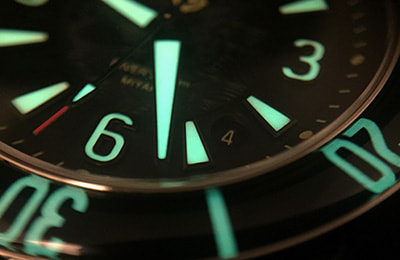

• Hands:  Luminescent Hour, Minute & Second Hands with

            Super-LumiNova Light Old Radium Lume

• Date Window:  4:30

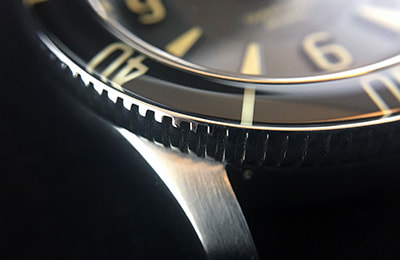

BEZEL:

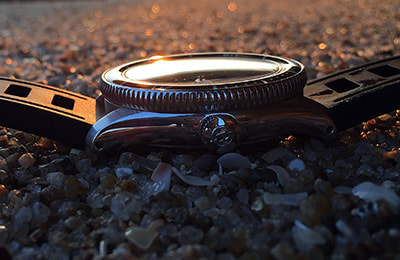

• 316L Stainless Steel with Domed Sapphire Insert
• 120-Click, Unidirectional Rotation
• Diameter:  41.6 mm
• Removable:  Yes


CRYSTAL:

• Double -Domed Sapphire with Colorless Internal                         Anti-Reflective Coating

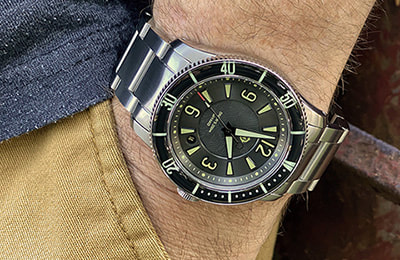

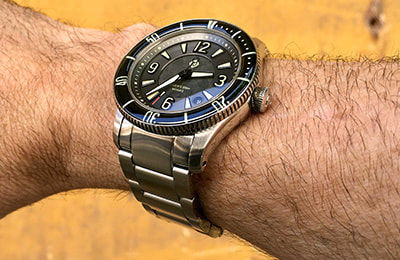

BAND:

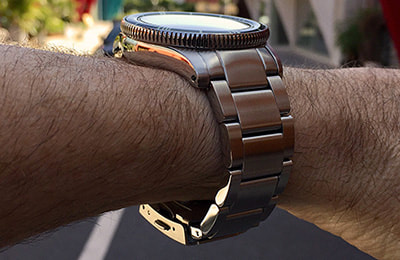

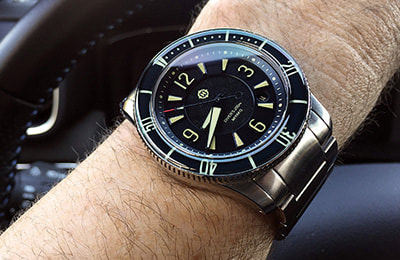

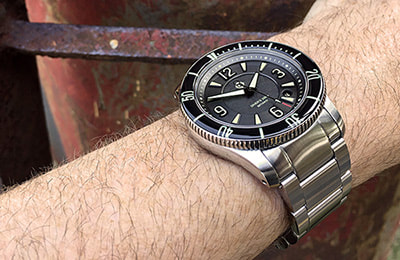

• Stainless Steel Bracelet and FC3 Clasp with Brushed/Polished Finish  (22 mm Bracelet Tapers to 20 mm at Clasp)

          Maximum Length:  190 mm / 7.5″ (alone)
                                             235 mm / 9.25″ (on watch)
          Minimum Length:  120 mm / 4.5″ (alone)
                                            165 mm / 6.25″ (on watch)

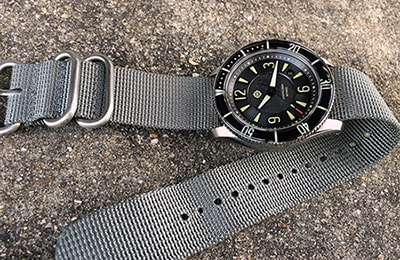

• NS2 Nylon Strap with Stainless Steel Buckle and Keeper Rings

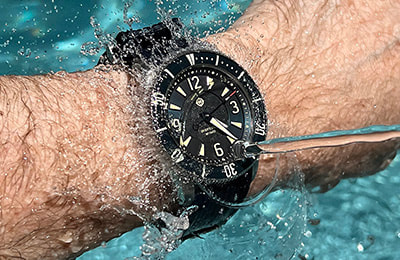

WATER RESISTANCE:

• 200 m / 20 atm / 655 ft
• Tested in accordance with ISO 6425:2018

WEIGHT:

• With Stainless Bracelet (at full length): 195 grams
• With NS2 Nylon Strap:  110 grams

ACCESSORIES:

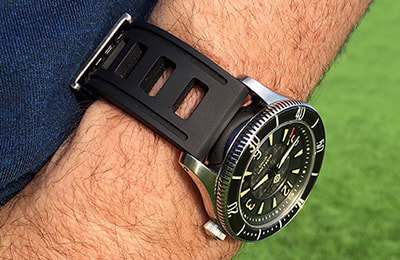

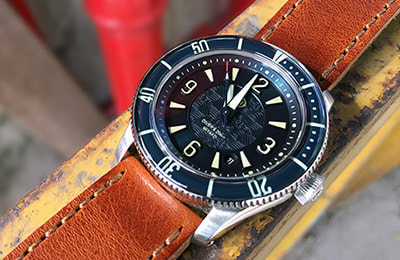

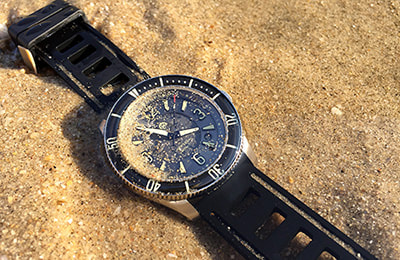

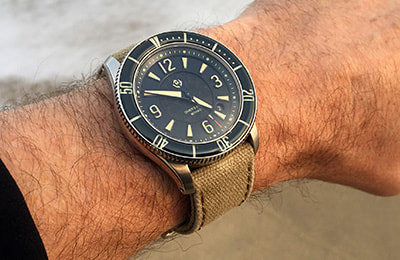

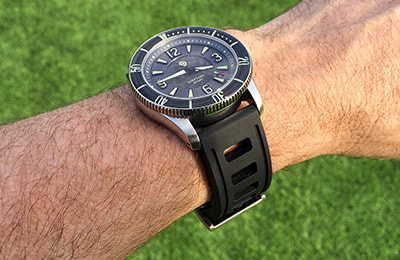

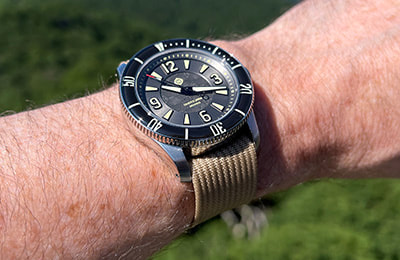

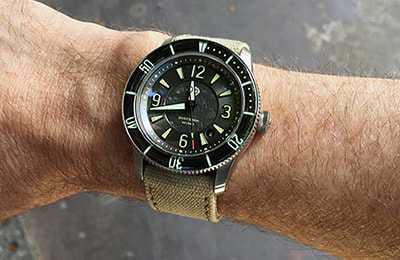

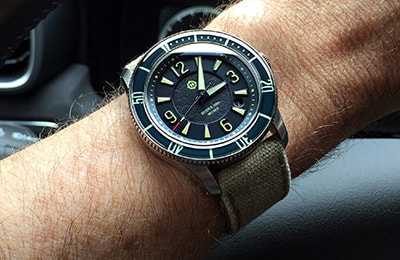

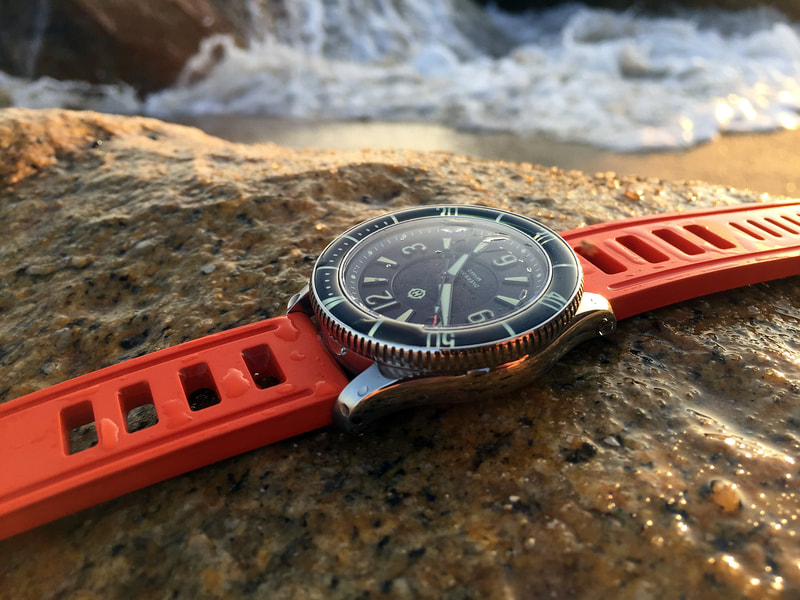

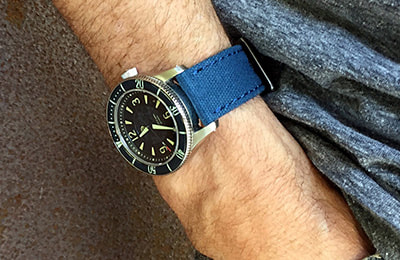

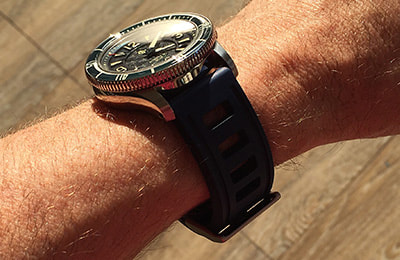

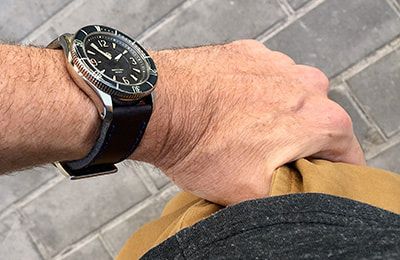

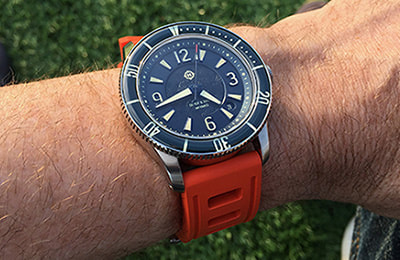

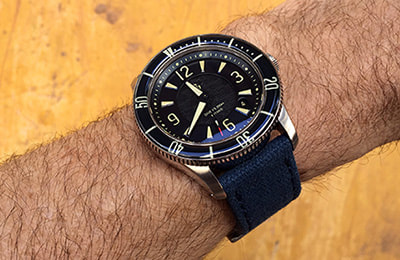

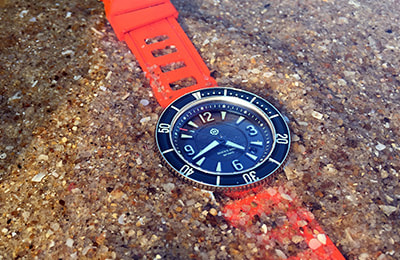

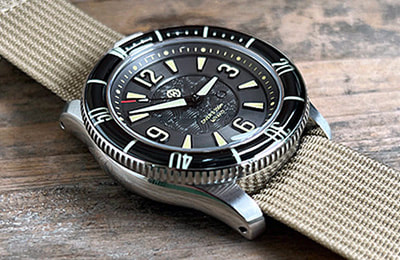

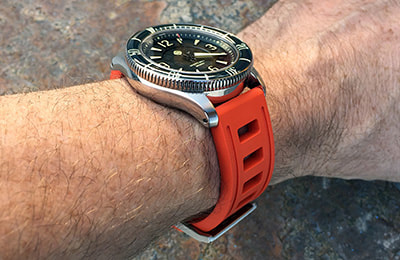

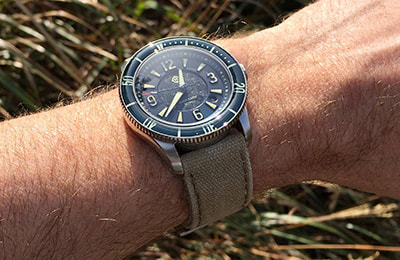

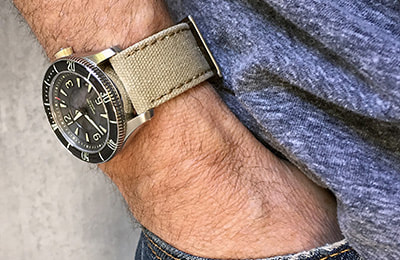

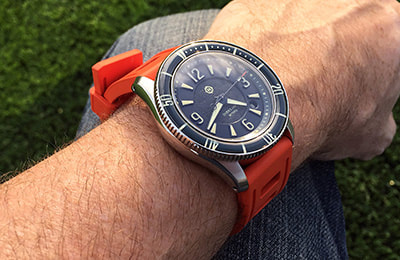

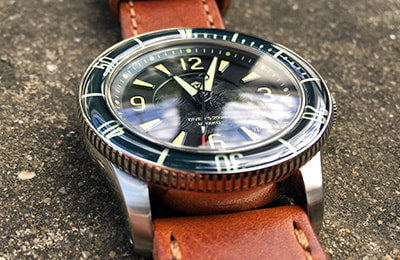

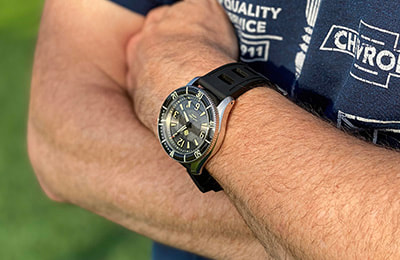

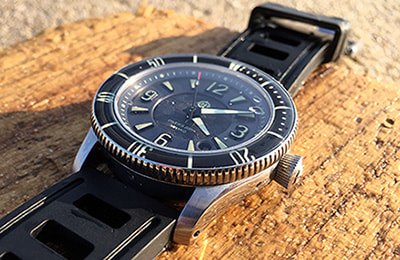

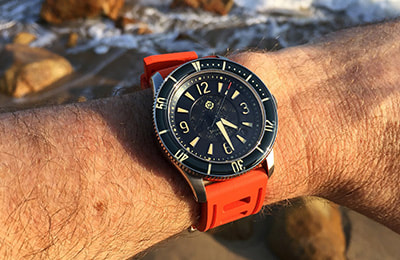

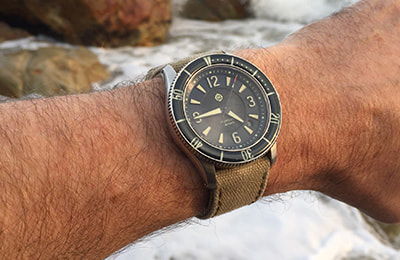

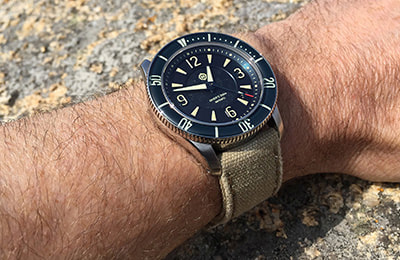

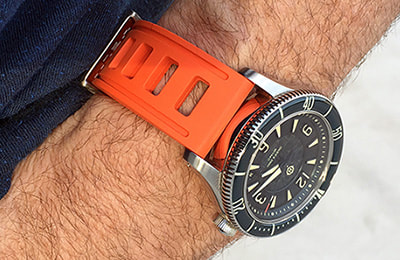

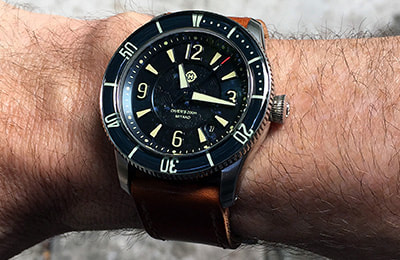

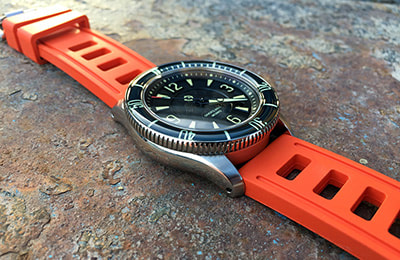

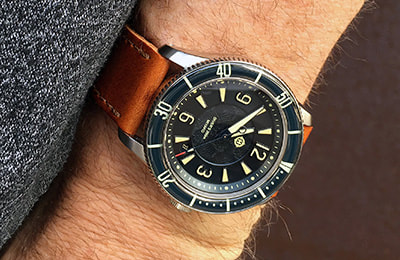

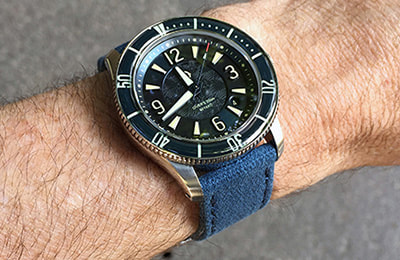

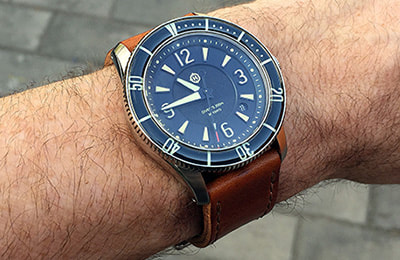

• The rubber, canvas and leather straps pictured in some photos at left, as well as the NS1 and NS3 nylon straps, are available separately and at a discount when purchased with a watch.
